MAX16136 - High-Precision Supervisory

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX16136
Manufacturer	Maxim Integrated
File Size	449.26 KB
Description	High-Precision Supervisory
Datasheet	MAX16136 Datasheet

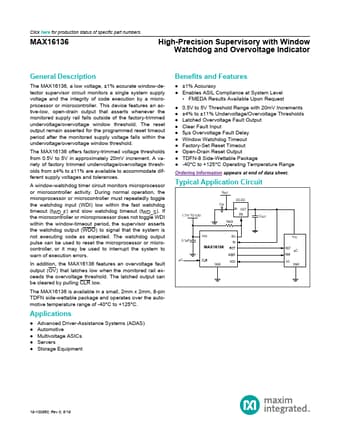

Additional preview pages of the MAX16136 datasheet.

Product details

Description

The MAX16136, a low voltage, ±1% accurate window-detector supervisor circuit monitors a single system supply voltage and the integrity of code execution by a microprocessor or microcontroller.

Features

an active-low, open-drain output that asserts whenever the monitored supply rail falls outside of the factory-trimmed undervoltage/overvoltage window threshold. The reset output remain asserted for the programmed reset timeout period after the monitored supply voltage falls within the undervoltage/overvoltage window threshold. The MAX16136 offers factory-trimmed voltage thresholds from 0.5V to 5V in approximately 20mV increment. A variety of factory trimmed undervoltage/overvoltage thresholds fr.
