MAX20070B, MAX20070 Integrated TFT Power Supplies and LED Backlight Drivers

MAX20070B Description

MAX20070/MAX20070B EVALUATION KIT AVAILABLE Integrated TFT Power Supplies and LED Backlight Drivers General .
The MAX20070/MAX20070B are highly integrated power supplies and LED backlight drivers for automotive TFT-LCD applications.

MAX20070B Features

* Integrates Both TFT Power Supplies and LED Backlight Driver in One IC, Reducing Component Count
* Alleviates EMI Due to Spread Spectrum on Both Source Driver Supplies and LED Driver
* 10000:1 Dimming Ratio at 200Hz Dimming Frequency
* Available in a 32-Pin (5mm

MAX20070B Applications

* The devices integrate one buckboost converter, one boost converter, two gate-driver supplies, and a boost/SEPIC converter that can power one to two strings of LEDs in the display backlight. The source-driver power supplies consist of a boost converter and an inverting buck-boost converter that can

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX20070B, MAX20070. Please refer to the document for exact specifications by model.

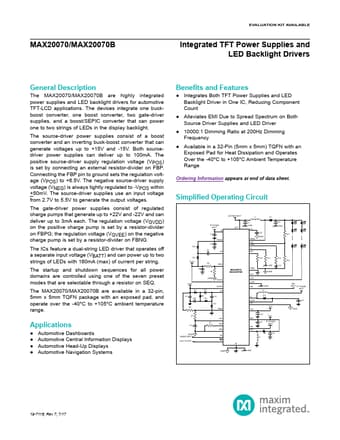

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX20070B, MAX20070
Manufacturer
Maxim Integrated ↗
File Size
939.73 KB
Datasheet
MAX20070-MaximIntegrated.pdf
Description
Integrated TFT Power Supplies and LED Backlight Drivers
Note
This datasheet PDF includes multiple part numbers: MAX20070B, MAX20070.
Please refer to the document for exact specifications by model.
