MAX22501E, MAX22500E - 100Mbps Half-Duplex RS-485/RS-422 Transceivers

Maxim Integrated

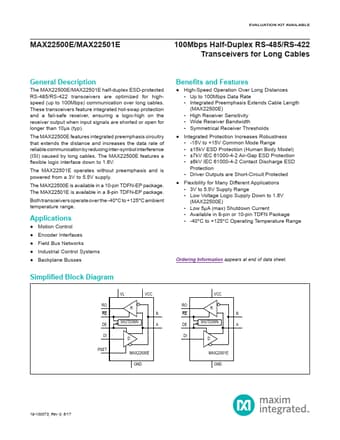

MAX22501E Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX22501E, MAX22500E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MAX22501E, MAX22500E
Manufacturer	Maxim Integrated ↗
File Size	1.13 MB
Description	100Mbps Half-Duplex RS-485/RS-422 Transceivers
Datasheet	MAX22500E-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: MAX22501E, MAX22500E. Please refer to the document for exact specifications by model.

MAX22501E Product details

Description

The MAX22500E/MAX22501E half-duplex ESD-protected RS-485/RS-422 transceivers are optimized for highspeed (up to 100Mbps) communication over long cables.

Features

integrated preemphasis circuitry that extends the distance and increases the data rate of reliable communication by reducing inter-symbol interference (ISI) caused by long cables. The MAX22500E features a flexible logic interface down to 1.6V. The MAX22501E operates without preemphasis and is powered from a 3V to 5.5V supply. The MAX22500E is available in a 10-pin TDFN-EP package. The MAX22501E is available in a 8-pin TDFN-EP package. Both transceivers operate over the -40°C to +125°C ambie.
