MAX22516 - IO-Link Data Link Controller

Analog Devices

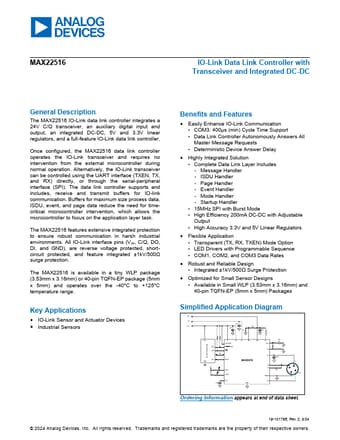

MAX22516 Datasheet Preview — Preview of MAX22516 PDF

Datasheet Details

Part number	MAX22516
Manufacturer	Analog Devices ↗
File Size	3.40 MB
Description	IO-Link Data Link Controller
Datasheet	MAX22516-AnalogDevices.pdf

MAX22516 Product details

Description

The MAX22516 IO-Link data link controller integrates a 24V C/Q transceiver, an auxiliary digital input and output, an integrated DC-DC, 5V and 3.3V linear regulators, and a full-feature IO-Link data link controller.

Features

extensive integrated protection to ensure robust communication in harsh industrial environments. All IO-Link interface pins (V24, C/Q, DO, DI, and GND), are reverse voltage protected, shortcircuit protected, and feature integrated ±1kV/500Ω surge protection. The MAX22516 is available in a tiny WLP package (3.53mm x 3.16mm) or 40-pin TQFN-EP package (5mm x 5mm) and operates over the -40°C to +125°C temperature range. Key.
