MAX3517 Upstream CATV Amplifiers

The MAX3514/MAX3516/MAX3517 programmable-gain amplifiers are designed for use in CATV upstream applications. The MAX3514/MAX3517 drive up to +61dBmV (QPSK) into a 75Ω load when driven with a +34dBmV nominal input signal. The MAX3516 drives up to +64dBmV (QPSK). Both input and output ports are differ.

MAX3514_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX3517, MAX3514. Please refer to the document for exact specifications by model.

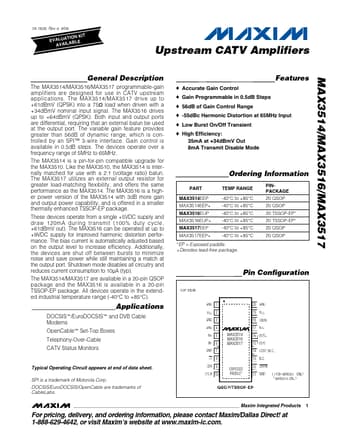

MAX3517 Datasheet Preview Page 2 MAX3517 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX3517, MAX3514

Manufacturer:

Maxim Integrated ↗

File Size:

522.04 KB

Description:

Upstream catv amplifiers.

Note:

This datasheet PDF includes multiple part numbers: MAX3517, MAX3514.
Please refer to the document for exact specifications by model.
