MAX3509 Datasheet, Amplifier, Maxim

MAX3509 Features

  • Amplifier o Ultra-Low Power-Up/Down Transients, 25mV (typ) at 66dBmV Output o Single-Supply Operation o Output Level Ranges from <12dBmV to 67dBmV (QPSK) o Gain Programmable in 1dB Steps o Low Tr

PDF File Details

Part number:

MAX3509

Manufacturer:

Maxim

File Size:

206.64kb

Download:

📄 Datasheet

Description:

Upstream catv amplifier. The MAX3509 is a programmable power amplifier for use in CATV upstream applications. The device outputs up to 66dBmV QPSK through a 1

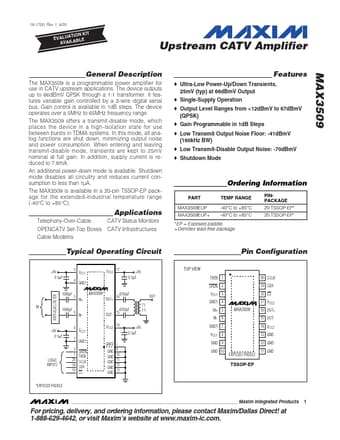

Datasheet Preview: MAX3509 📥 Download PDF (206.64kb)
Page 2 of MAX3509 Page 3 of MAX3509

MAX3509 Application

  • Applications The device outputs up to 66dBmV QPSK through a 1:1 transformer. It features variable gain controlled by a 3-wire digital serial bus. G
