MAX3771

2.125Gbps /1.063Gbps / 3.3V Fibre Channel Repeaters

Maxim Integrated

MAX3771 Features

* o Meet Fibre Channel Jitter Tolerance Requirements o 3.0V to 3.6V Operation o Internally Terminated Data and Clock I/O o Reference Clock Not Required o Frequency Lock Indication o Low Power Consumption 215mW at 3.3V (MAX3770) 190mW at 3.3V (MAX3771) Pin Configuration TOP VIEW FILT+ 1 FILT- 2 GND 3

MAX3771 General Description

The MAX3770 is a 2.125Gbps Fibre Channel repeater IC. The MAX3771 provides a pin-compatible solution for 1.063Gbps Fibre Channel. Both devices are optimized for use in Fibre Channel arbitrated-loop applications and operate from a 3.3V supply. The MAX3770 is compatible with Fibre Channel jitter toler.

MAX3771 Datasheet (564.17 KB)

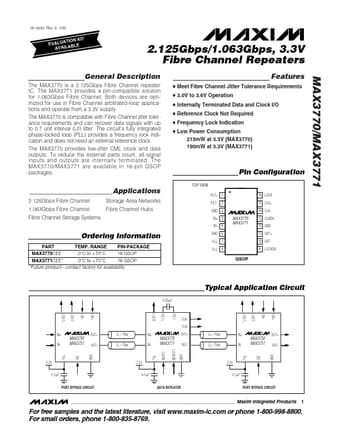

MAX3771 Datasheet Preview — Preview of MAX3771 PDF

Datasheet Details

Part number:

MAX3771

Manufacturer:

Maxim Integrated ↗

File Size:

564.17 KB

Description:

2.125gbps /1.063gbps / 3.3v fibre channel repeaters.
