MAX3772, Dual-Rate Fibre Channel Repeaters

19-2192; Rev 0; 10/01 Dual-Rate Fibre Channel Repeaters General .
The MAX3772. MAX3775 are dual-rate (1.

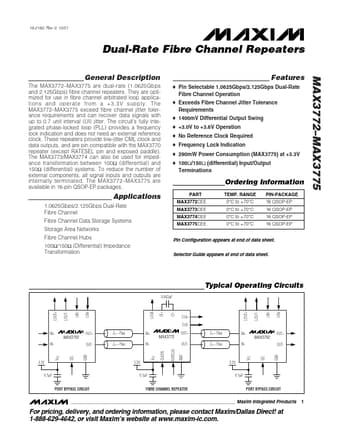

datasheet Preview Page 1 from Datasheet4u.com

MAX3772_MaximIntegratedProducts.pdf

MAX3772 Datasheet Preview — Preview of MAX3772 PDF

Datasheet Details

Part number:

MAX3772

Manufacturer:

Maxim

File Size:

220.60 KB

Description:

Dual-Rate Fibre Channel Repeaters

Features

* o Pin Selectable 1.0625Gbps/2.125Gbps Dual-Rate Fibre Channel Operation o Exceeds Fibre Channel Jitter Tolerance Requirements o 1400mV Differential Output Swing o +3.0V to +3.6V Operation o No Reference Clock Required o Frequency Lock Indication o 290mW Power Consumption (MAX3775) at +3.3V o 100Ω/15

Applications

* and operate from a +3.3V supply. The MAX3772
* MAX3775 exceed fibre channel jitter tolerance requirements and can recover data signals with up to 0.7 unit interval (UI) jitter. The circuit’s fully integrated phase-locked loop (PLL) provides a frequency lock indication and does not need an exte
