MAX4278, MAX4178 Datasheet - Maxim Integrated

MAX4278 Gain of +1/Gain of +2 Closed-Loop Buffers

The MAX4178/MAX4278 are ±5V, wide-bandwidth, fastsettling, closed-loop buffers featuring high slew rate, high precision, high output current, low noise, and low differential gain and phase errors. The MAX4178, with a -3dB bandwidth of 330MHz, is preset for unity voltage gain (0dB). The MAX4278 is pr.

MAX4178_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX4278, MAX4178. Please refer to the document for exact specifications by model.

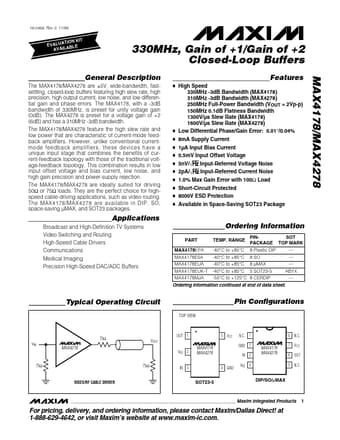

MAX4278 Datasheet Preview Page 2 MAX4278 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX4278, MAX4178

Manufacturer:

Maxim Integrated ↗

File Size:

603.96 KB

Description:

Gain of +1/gain of +2 closed-loop buffers.

Note:

This datasheet PDF includes multiple part numbers: MAX4278, MAX4178.
Please refer to the document for exact specifications by model.
