MAX4209, MAX4208 Precision Instrumentation Amplifiers

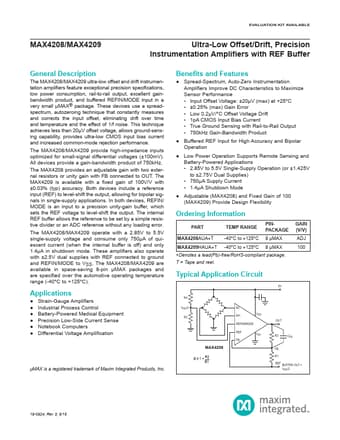

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com 19-0924; Rev 0; 9/07 KIT ATION EVALU LE B A IL A AV Ultra-Low Offset/Drift, Precision Instrumentation Amplifiers with REF Buffer.
Features. Ultra-Low Input Offset Voltage ±20µV (max) at +25°C. ±0. Low 0.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4209, MAX4208. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MAX4209, MAX4208
Manufacturer
Maxim Integrated ↗ Products
File Size
549.05 KB
Datasheet
MAX4208_MaximIntegratedProducts.pdf
Description
Precision Instrumentation Amplifiers
Note
This datasheet PDF includes multiple part numbers: MAX4209, MAX4208.
Please refer to the document for exact specifications by model.

Features

* Ultra-Low Input Offset Voltage ±20µV (max) at +25°C
* ±0.25% (max) Gain Error
* Low 0.2µV/°C Offset Voltage Drift
* 1pA CMOS Input Bias Current
* True Ground Sensing with Rail-to-Rail Output
* Buffered REF Input for High Accuracy and Bipolar Operatio

Applications

* In both devices, REFIN/MODE is an input to a precision unity-gain buffer, which sets the REF voltage to level-shift the output. The internal REF buffer allows the reference to be set by a simple resistive divider or an ADC reference without any loading error. The MAX4208/MAX4209 operate with a 2.85
