MAX4004, High-Side Current Monitors

www.DataSheet4U.com 19-2742; Rev 1; 5/03 High-Accuracy, High-Side Current Monitors in SOT23 General .
The MAX4004/MAX4006 precision, high-side, current monitors are specifically designed for monitoring photodiode current in fiber applications.

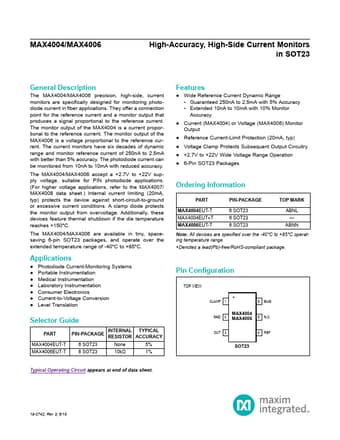

datasheet Preview Page 1 from Datasheet4u.com

MAX4004_MaximIntegratedProducts.pdf

MAX4004 Datasheet Preview — Preview of MAX4004 PDF

Datasheet Details

Part number:

MAX4004

Manufacturer:

Maxim Integrated ↗ Products

File Size:

437.29 KB

Description:

High-Side Current Monitors

Features

* o Wide Reference Current Dynamic Range Guaranteed 250nA to 2.5mA with 5% Accuracy Extended 10nA to 10mA with 10% Monitor Accuracy o Current (MAX4004) or Voltage (MAX4006) Monitor Output o Reference Current-Limit Protection (20mA, typ) o Voltage Clamp Protects Subsequent Output Circuitry o +2.7V to +

Applications

* They offer a connection point for the reference current and a monitor output that produces a signal proportional to the reference current. The monitor output of the MAX4004 is a current proportional to the reference current. The monitor output of the MAX4006 is a voltage proportional to the referen
