MAX4007 - High-Side Current Monitors

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX4007
Manufacturer	Maxim Integrated Products
File Size	227.00 KB
Description	High-Side Current Monitors
Datasheet	MAX4007 Datasheet

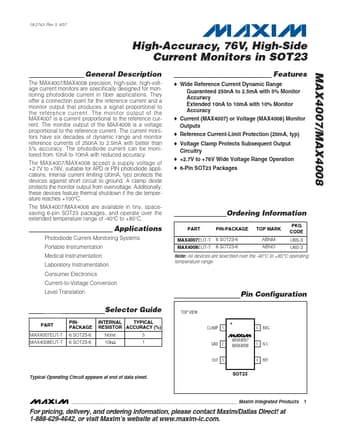

Additional preview pages of the MAX4007 datasheet.

Product details

Description

The MAX4007/MAX4008 precision, high-side, high-voltage current monitors are specifically designed for monitoring photodiode current in fiber applications.

Features

o Wide Reference Current Dynamic Range Guaranteed 250nA to 2.5mA with 5% Monitor Accuracy Extended 10nA to 10mA with 10% Monitor Accuracy o Current (MAX4007) or Voltage (MAX4008) Monitor Outputs o Reference Current-Limit Protection (20mA, typ) o Voltage Clamp Protects Subsequent Output Circuitry o +2.7V to +76V Wide Voltage Range Operation o 6-Pin SOT23 Packages MAX4007/MAX4008 Ordering Information PART TEMP RANGE PIN-.
