MAX4079 - Complete Audio/Video Backend Solution

MAX4079 Description

19-3780; Rev 1; 3/09 KIT ATION EVALU E L B A AVAIL Complete Audio/Video Backend Solution General .
Features. Integrated Video Reconstruction Filters. 6MHz Lowpass Filter Supports NTSC, PAL, or DVB per ITU-601. Integrated Vid.

MAX4079 Features

* Integrated Video Reconstruction Filters
* 6MHz Lowpass Filter Supports NTSC, PAL, or DVB per ITU-601
* Integrated Video and Audio Amplifiers
* Integrated Video Input Clamps and Biasing
* Mono Audio and CVBS Output to Drive External Modulator
* +5V (Vid

MAX4079 Applications

* Satellite Receivers Cable Receivers Home Theater Systems DVD Players AV Receivers Televisions YIN CLAMP LP FILTER +6dB YOUT CIN BIAS NETWORK LP FILTER +6dB COUT +6dB CVBSIN CLAMP LP FILTER +6dB CVBSOUT1 CVBSOUT2 +6dB RINP +6dB RINN +3dB LINP ROUT1 ROUT2 MONO Pin Configuration appea

📥 Download Datasheet

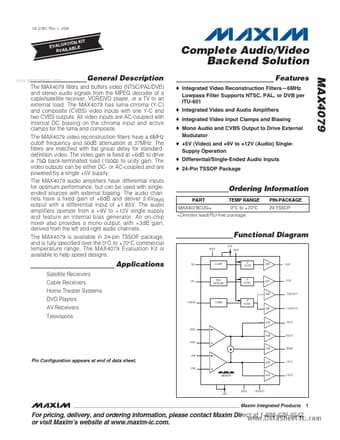

Preview of MAX4079 PDF
