MAX4570, MAX4550, Clickless Audio/Video Analog Crosspoint Switches

19-1397; Rev 0; 10/98 EVAALVUAAILTAIOBNLEKIT Serially Controlled, Dual 4x2, Clickless Audio/Video Analog Crosspoint Switches MAX4550/MAX4570 General.
The MAX4550/MAX4570 serial-interface, programmable, dual 4x2 audio/video crosspoint switches are ideal for multimedia applications.

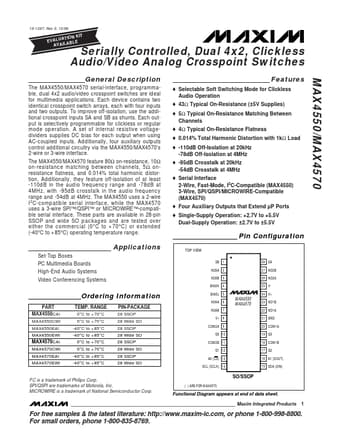

datasheet Preview Page 1 from Datasheet4u.com

MAX4550_MaximIntegratedProducts.pdf

MAX4570 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX4570, MAX4550. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX4570, MAX4550

Manufacturer:

Maxim Integrated ↗

File Size:

170.26 KB

Description:

Clickless Audio/Video Analog Crosspoint Switches

Note:

This datasheet PDF includes multiple part numbers: MAX4570, MAX4550.
Please refer to the document for exact specifications by model.

Applications

* Each device contains two identical crosspoint switch arrays, each with four inputs and two outputs. To improve off-isolation, use the additional crosspoint inputs SA and SB as shunts. Each output is selectively programmable for clickless or regular mode operation. A set of internal resistive voltag
