MAX4573, MAX4572 Datasheet - Maxim

MAX4573 Serially Controlled / Clickless Audio/Video Switches

MAX4573 Features

* 35Ω max on-resistance, -90dB audio off-isolation at 20kHz, -60dB video off-isolation at 1.0MHz, and “clickless” mode operation for audio applications. The MAX4571/MAX4573 contain eleven SPST switches, while the MAX4572/MAX4574 contain two SPST switches and six SPDT switches. The MAX4571/MAX4572 feat

MAX4572-Maxim.pdf

This datasheet PDF includes multiple part numbers: MAX4573, MAX4572. Please refer to the document for exact specifications by model.

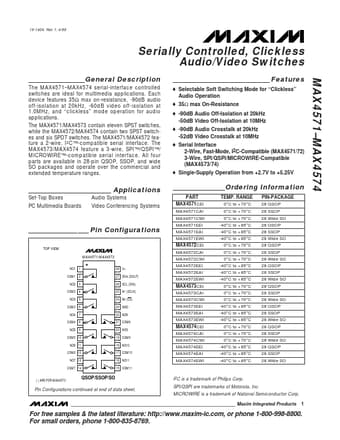

MAX4573 Datasheet Preview Page 2 MAX4573 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX4573, MAX4572

Manufacturer:

Maxim

File Size:

311.73 KB

Description:

Serially controlled / clickless audio/video switches.

Note:

This datasheet PDF includes multiple part numbers: MAX4573, MAX4572.
Please refer to the document for exact specifications by model.
