MAX4617 Datasheet - Maxim Integrated

MAX4617 CMOS Analog Multiplexers/Switches

The MAX4617/MAX4618/MAX4619 are high-speed, lowvoltage, CMOS analog ICs configured as an 8-channel multiplexer (MAX4617), two 4-channel multiplexers (MAX4618), and three single-pole/double-throw (SPDT) switches (MAX4619). These CMOS devices can operate continuously with a +2V to +5.5V single supply..

MAX4617 Features

* o Fast Switching Times 15ns tON 10ns tOFF o Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053 and MAX4581/MAX4582/MAX458

MAX4617-MaximIntegrated.pdf

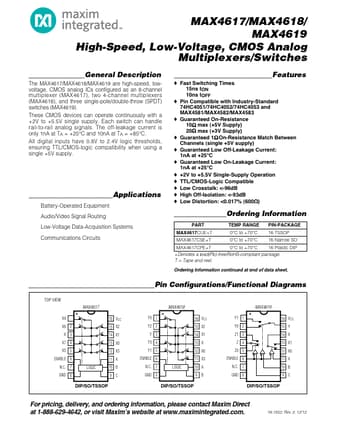

Preview of MAX4617 PDF
MAX4617 Datasheet Preview Page 2 MAX4617 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX4617

Manufacturer:

Maxim Integrated ↗

File Size:

166.18 KB

Description:

Cmos analog multiplexers/switches.
