MAX4718, MAX4717 - Dual SPDT Analog Switches

MAX4718 Description

19-2627; Rev 2; 9/05 MAX4717/MAX4718 4.5Ω/20Ω, 300MHz Bandwidth, Dual SPDT Analog Switches in UCSP General .
The MAX4717/MAX4718 low-voltage, low on-resistance (RON), dual single-pole/double throw (SPDT) analog switches operate from a single +1.

MAX4718 Features

* two 4.5Ω RON (max) SPDT switches with 1.2Ω flatness and 0.3Ω matching between channels. The MAX4718 features one 4.5Ω RON (max) SPDT switch and one 20Ω RON (max) SPDT switch. The 20Ω switch has a guaranteed matching and flatness of 0.4Ω and 1.2Ω, respectively. These switches offer breakbefore-make s

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4718, MAX4717. Please refer to the document for exact specifications by model.

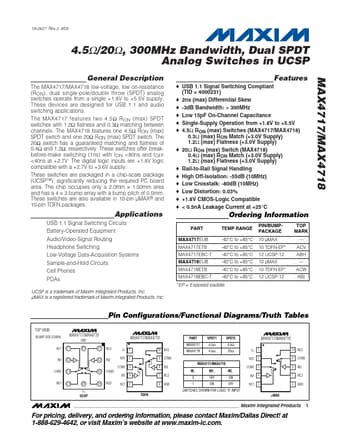

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4718, MAX4717
Manufacturer
Maxim Integrated ↗
File Size
304.07 KB
Datasheet
MAX4717_MaximIntegratedProducts.pdf
Description
Dual SPDT Analog Switches
Note
This datasheet PDF includes multiple part numbers: MAX4718, MAX4717.
Please refer to the document for exact specifications by model.
