MAX6374

Pin-Selectable Watchdog Timers

MAX6374 Features

* Precision Watchdog Timer for Critical μP Applications

* Pin-Selectable Watchdog Timeout Periods

* Pin-Selectable Watchdog Startup Delay Periods

* Ability to Change Watchdog Timing Characteristics Without Power Cycling

* Open-Drain or Push-Pull Pulsed Ac

MAX6374 General Description

The MAX6369

*MAX6374 are pin-selectable watchdog timers that supervise microprocessor (μP) activity and signal when a system is operating improperly. During normal operation, the microprocessor should repeatedly toggle the watchdog input (WDI) before the selected watchdog timeout period elaps.

MAX6374 Datasheet (731.31 KB)

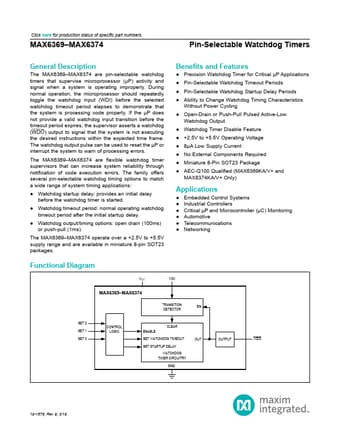

Preview of MAX6374 PDF

Datasheet Details

Part number:

MAX6374

Manufacturer:

Maxim Integrated ↗

File Size:

731.31 KB

Description:

Pin-selectable watchdog timers.
