MAX6376, MAX6375 Datasheet - Maxim Integrated

MAX6376 Ultra-Low-Power SC70/SOT23 Voltage Detectors

The MAX6375 *MAX6380 are ultra-low-power circuits used for monitoring battery, power-supply, and regulated system voltages. Each detector contains a precision bandgap reference, comparator, and internally trimmed resistors that set specified trip threshold voltages. These devices provide exce.

MAX6376 Features

* Ultra-Low 500nA Supply Current (MAX6375/MAX6376/MAX6377)

* Thresholds Available from 2.20V to 4.63V in Approximately 100mV Increments

* ±2.5% Threshold Accuracy Over Temperature

* Low Cost

* Available in Three Versions: Push-Pull OUT, Push-Pull OUT, and Open

MAX6375-MaximIntegrated.pdf

This datasheet PDF includes multiple part numbers: MAX6376, MAX6375. Please refer to the document for exact specifications by model.

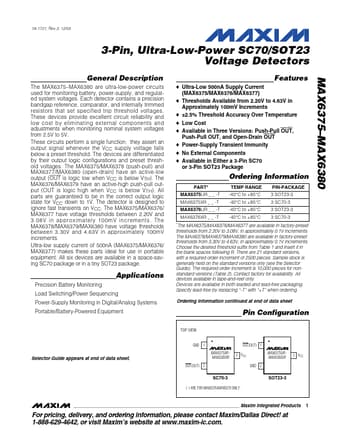

MAX6376 Datasheet Preview Page 2 MAX6376 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX6376, MAX6375

Manufacturer:

Maxim Integrated ↗

File Size:

146.57 KB

Description:

Ultra-low-power sc70/sot23 voltage detectors.

Note:

This datasheet PDF includes multiple part numbers: MAX6376, MAX6375.
Please refer to the document for exact specifications by model.
