MAX6507, MAX6505 Datasheet - Maxim Integrated

MAX6507 Dual Trip SOT Temperature Switches

The MAX6505 *MAX6508 temperature switches have dual logic outputs that assert when the die temperature crosses their trip thresholds. Trip thresholds are factory programmed to convenient temperatures in 5°C increments. The MAX6505/MAX6506 have an ALARM output that asserts when the temperature.

MAX6507 Features

* ±0.5°C (typ) Threshold Accuracy Over Full Temperature Range

* No External Components Required

* Low Cost

* 30µA (typ) Supply Current

* Factory-Programmed Thresholds from -40°C to +125°C in 5°C Increments

* Open-Drain Outputs (MAX6505/MAX6507), Push-P

MAX6505_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX6507, MAX6505. Please refer to the document for exact specifications by model.

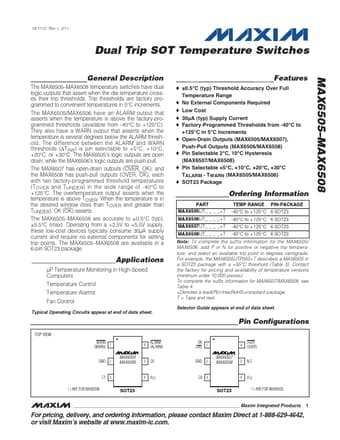

MAX6507 Datasheet Preview Page 2 MAX6507 Datasheet Preview Page 3
