MAX6502 Datasheet, Switches, Maxim

MAX6502 Features

• Switches o ±0.5°C (typical) Threshold Accuracy Over Full Temperature Range o No External Components Required o Low Cost o 30µA Supply Current o Factory-Programmed Thresholds from -45°C to +115°C

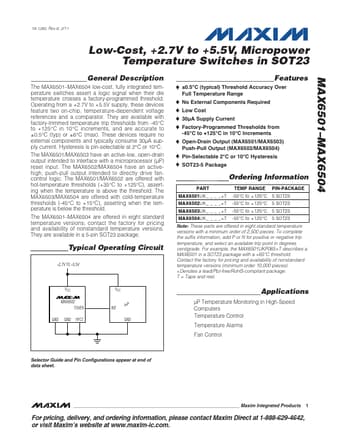

PDF File Details

Part number:

MAX6502

Manufacturer:

Maxim

File Size:

258.41kb

Download:

📄 Datasheet

Description:

Low-cost / +2.7v to +5.5v / micropower temperature switches. The MAX6501  –MAX6504 low-cost, fully integrated temperature switches assert a logic signal when their die temperature

MAX6502 Application

• Applications µP Temperature Monitoring in High-Speed Computers Temperature Control Selector Guide and Pin Configurations appear at end of data shee
