MAX6505

Dual Trip SOT Temperature Switches

Maxim

MAX6505 Features

* o ±0.5°C (typ) Threshold Accuracy Over Full Temperature Range o No External Components Required o Low Cost o 30µA (typ) Supply Current o Factory-Programmed Thresholds from -40°C to +125°C in 5°C Increments o Open-Drain Outputs (MAX6505/MAX6507), Push-Pull Outputs (MAX6506/MAX6508) o Pin Selectable +

MAX6505 General Description

The MAX6505

*MAX6508 temperature switches have dual logic outputs that assert when the die temperature crosses their trip thresholds. Trip thresholds are factory programmed to convenient temperatures in 5°C increments. The MAX6505/MAX6506 have an ALARM output that asserts when the temperature.

MAX6505 Datasheet (184.80 KB)

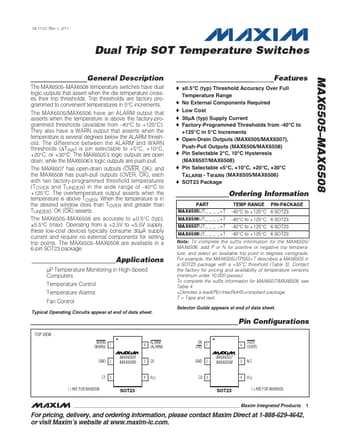

MAX6505 Datasheet Preview — Preview of MAX6505 PDF

Datasheet Details

Part number:

MAX6505

Manufacturer:

Maxim

File Size:

184.80 KB

Description:

Dual trip sot temperature switches.
