MAX706R - Low-Cost uP Supervisory Circuits

This page provides the datasheet information for the MAX706R, a member of the MAX706S Low-Cost uP Supervisory Circuits family.

Description

The MAX706P/R/S/T, MAX706AP/AR/AS/AT, and MAX708R/S/T microprocessor (µP) supervisory circuits reduce the complexity and number of components required to monitor +3V power-supply levels in +3V to +5V µP systems.

📥 Download Datasheet

Datasheet preview – MAX706R

Datasheet Details

Part number MAX706R
Manufacturer Maxim Integrated
File Size 776.33 KB
Description Low-Cost uP Supervisory Circuits
Datasheet download datasheet MAX706R Datasheet
Additional preview pages of the MAX706R datasheet.

📁 Similar Datasheet

  • MAX706 - uP Supervisory Circuit (ART CHIP)
  • MAX7060 - 280MHz to 450MHz Programmable ASK/FSK Transmitter (Maxim Integrated Products)
  • MAX700 - Power-Supply Monitor (Maxim)
  • MAX7000A - Programmable Logic Device (Altera Corporation)
  • MAX701 - Power-Supply Monitor (Maxim)
  • MAX702 - Power-Supply Monitor (Maxim)
  • MAX703 - Low-Cost P Supervisory Circuits (Maxim)
  • MAX7030 - ASK Transceiver (Maxim Integrated Products)
  • MAX7031 - ASK Transceiver (Maxim Integrated Products)
  • MAX7032 - ASK/FSK Transceiver (Maxim Integrated Products)
Other Datasheets by Maxim Integrated
  • MAX706 - Low-Cost / uP Supervisory Circuits
  • MAX706AP - Low-Cost uP Supervisory Circuits
  • MAX706AR - Low-Cost uP Supervisory Circuits
  • MAX706AS - Low-Cost uP Supervisory Circuits
  • MAX706AT - Low-Cost uP Supervisory Circuits
  • MAX706P - Low-Cost uP Supervisory Circuits
  • MAX706S - Low-Cost uP Supervisory Circuits
  • MAX706T - Low-Cost uP Supervisory Circuits

Full PDF Text Transcription

Click to expand full text

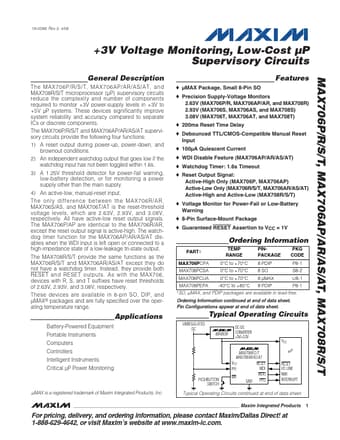

19-0099; Rev 5; 4/06 MAX706P/R/S/T, MAX706AP/AR/AS/AT, MAX708R/S/T +3V Voltage Monitoring, Low-Cost µP Supervisory Circuits General Description The MAX706P/R/S/T, MAX706AP/AR/AS/AT, and MAX708R/S/T microprocessor (µP) supervisory circuits reduce the complexity and number of components required to monitor +3V power-supply levels in +3V to +5V µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. The MAX706P/R/S/T and MAX706AP/AR/AS/AT supervisory circuits provide the following four functions: 1) A reset output during power-up, power-down, and brownout conditions. 2) An independent watchdog output that goes low if the watchdog input has not been toggled within 1.6s. 3) A 1.
