MAX8216 Microprocessor Voltage Monitors

The MAX8215 contains five voltage comparators; four are for monitoring +5V, -5V, +12V, and -12V, and the fifth monitors any desired voltage. The MAX8216 is identical, except it monitors ±15V supplies instead of ±12V. The resistors required to monitor these voltages and provide comparator hysteresis .

MAX8215-Maxim.pdf

This datasheet PDF includes multiple part numbers: MAX8216, MAX8215. Please refer to the document for exact specifications by model.

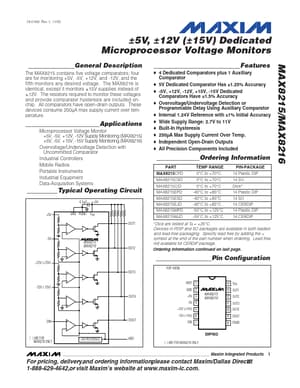

MAX8216 Datasheet Preview Page 2 MAX8216 Datasheet Preview Page 3
