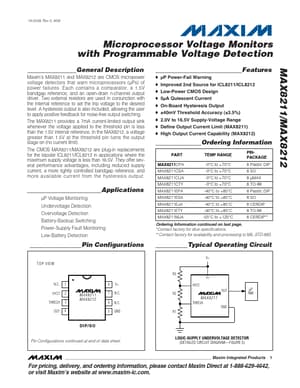

datasheet Preview Page 1 from Datasheet4u.com

MAX8212 Microprocessor Voltage Monitors

19-0539; Rev 5; 9/08 MAX8211/MAX8212 Microprocessor Voltage Monitors with Programmable Voltage Detection ________________General .
Maxim’s MAX8211 and MAX8212 are CMOS micropower voltage detectors that warn microprocessors (µPs) of power failures.

MAX8212_MaximIntegratedProducts.pdf

MAX8212 Datasheet Preview — Preview of MAX8212 PDF

Datasheet Details

Part number:

MAX8212

Manufacturer:

Maxim

File Size:

84.91 KB

Description:

Microprocessor Voltage Monitors

Features

* o µP Power-Fail Warning o Improved 2nd Source for ICL8211/ICL8212 o Low-Power CMOS Design o 5µA Quiescent Current o On-Board Hysteresis Output o ±40mV Threshold Accuracy (±3.5%) o 2.0V to 16.5V Supply-Voltage Range o Define Output Current Limit (MAX8211) o High Output Current Capability (MAX8212) __

Applications

* where the maximum supply voltage is less than 16.5V. They offer several performance advantages, including reduced supply current, a more tightly controlled bandgap reference, and more available current from the hysteresis output. ________________________Applications µP Voltage Monitoring Undervoltag
