MAX8211 - Microprocessor Voltage Monitors

Maxim

📥 Download Datasheet

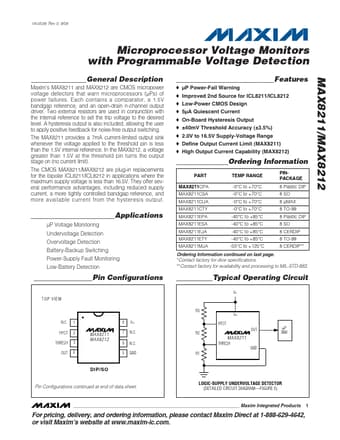

MAX8211 Datasheet Preview — Preview of MAX8211 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MAX8211
Manufacturer	Maxim
File Size	84.91 KB
Description	Microprocessor Voltage Monitors
Datasheet	MAX8211_MaximIntegratedProducts.pdf

MAX8211 Product details

Description

Maxim’s MAX8211 and MAX8212 are CMOS micropower voltage detectors that warn microprocessors (µPs) of power failures.

Features

o µP Power-Fail Warning o Improved 2nd Source for ICL8211/ICL8212 o Low-Power CMOS Design o 5µA Quiescent Current o On-Board Hysteresis Output o ±40mV Threshold Accuracy (±3.5%) o 2.0V to 16.5V Supply-Voltage Range o Define Output Current Limit (MAX8211) o High Output Current Capability (MAX8212) _______________Ordering Information PART TEMP RANGE PIN.
