MAX8752 - TFT LCD Step-Up DC-DC Converter

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX8752
Manufacturer	Maxim Integrated
File Size	457.22 KB
Description	TFT LCD Step-Up DC-DC Converter
Datasheet	MAX8752 Datasheet

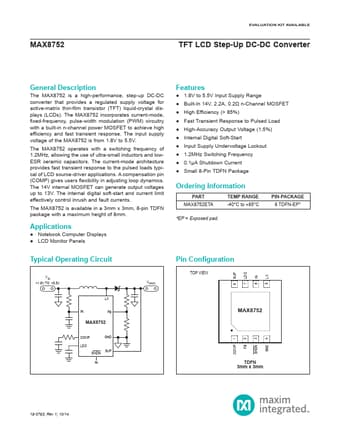

Additional preview pages of the MAX8752 datasheet.

Product details

Description

The MAX8752 is a high-performance, step-up DC-DC converter that provides a regulated supply voltage for active-matrix thin-film transistor (TFT) liquid-crystal displays (LCDs).

Features

1.8V to 5.5V Input Supply Range.
Built-In 14V, 2.2A, 0.2Ω n-Channel MOSFET.
High Efficiency (> 85%).
Fast Transient Response to Pulsed Load.
High-Accuracy Output Voltage (1.5%).
Internal Digital Soft-Start.
Input Supply Undervoltage Lockout.
1.2MHz Switching Frequency.
0.1μA Shutdown Current.
Small 8-Pin TDFN Package Ordering Information PART MAX8752ETA TEMP RANGE -40°C to +85°C PIN-.
