MAX8723

Step-Down Regulator

MAX8723 Features

* an internal power MOSFET, a built-in bootstrap diode for its MOSFET driver, and an interface for an external synchronous rectifier MOSFET drive to replace the Schottky diode and improve efficiency. Its fixed-frequency PWM/skip-mode operation and current-mode control architecture provide fast load-tr

MAX8723 General Description

The MAX8723 is a high-efficiency, switch-mode, stepdown regulator with a 14V internal power switch. With only a few external passive components, this low-cost regulator can generate a fixed 3.3V or adjustable DC output voltage of 2.0V to 3.6V of 2.0V to 3.6V (dual mode) from a 6V to 13.2V DC source..

MAX8723 Datasheet (457.70 KB)

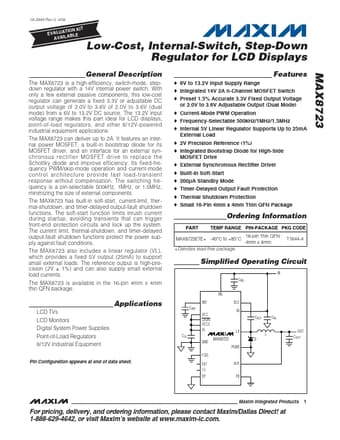

Preview of MAX8723 PDF

Datasheet Details

Part number:

MAX8723

Manufacturer:

Maxim Integrated ↗

File Size:

457.70 KB

Description:

Step-down regulator.
