MAX8722C - Low-Cost CCFL Backlight Controller

MAX8722C Description

19-3321; Rev 3; 2/09 KIT ATION EVALU E L B AVAILA Low-Cost CCFL Backlight Controller General .
Features o Synchronized to Resonant Frequency Longer Lamp Life Guaranteed Striking Capability High Power to Light Efficiency o Wide Input Voltage Rang.

MAX8722C Features

* o Synchronized to Resonant Frequency Longer Lamp Life Guaranteed Striking Capability High Power to Light Efficiency o Wide Input Voltage Range (4.6V to 28V) o Input-Voltage Feed-Forward for Excellent Line Rejection o Accurate Dimming Control with Analog Interface o 10:1 Dimming Range o Adjustable Ac

MAX8722C Applications

* Notebook Computer Displays LCD Monitors LCD TVs www. DataSheet4U. com Ordering Information PART MAX8722CEEG TEMP RANGE -40°C to +85°C PIN-PACKAGE 24 QSOP PKG CODE E24-1 Pin Configuration VIN Minimal Operating Circuit VCC BATT GND VDD TOP VIEW BATT 1 SHDN 2 ILIM 3 TFLT 4 CNTL 5 DPWM 6 SYNC 7 FREQ 8

📥 Download Datasheet

Preview of MAX8722C PDF

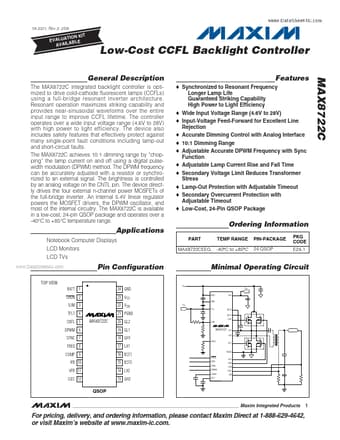

datasheet Preview Page 2 datasheet Preview Page 3
