MAX872 Datasheet, References, Maxim

MAX872 Features

  • References MAX872/MAX874 Applications Hand-Held Instruments Battery-Operated Equipment Power Supplies o ±500µA Sink/Source Current Ordering Information PART MAX872CPA MAX872CSA MAX872C/D MAX87

PDF File Details

Part number:

MAX872

Manufacturer:

Maxim

File Size:

169.86kb

Download:

📄 Datasheet

Description:

Precision voltage references. The MAX872/MAX874 precision 2.5V and 4.096V micropower voltage references consume a maximum of only 10µA and operate from supply volt

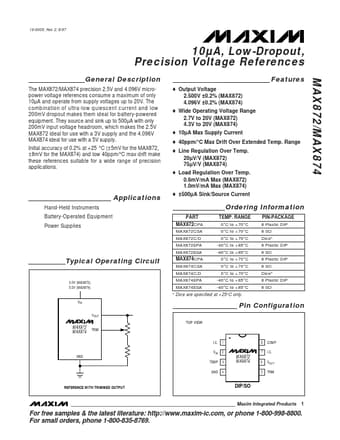

Datasheet Preview: MAX872 📥 Download PDF (169.86kb)
Page 2 of MAX872 Page 3 of MAX872

MAX872 Application

  • Applications o Output Voltage 2.500V ±0.2% (MAX872) 4.096V ±0.2% (MAX874) o Wide Operating Voltage Range 2.7V to 20V (MAX872) 4.3V to 20V (MAX874)
