MAX870 Datasheet, Inverters, Maxim

MAX870 Features

• Inverters o 5-Pin SOT23-5 Package o 99% Voltage Conversion Efficiency o Invert Input Supply Voltage o 0.7mA Quiescent Current (MAX870) o +1.4V to +5.5V Input Voltage Range o Require Only Two Capa

PDF File Details

Part number:

MAX870

Manufacturer:

Maxim

File Size:

402.83kb

Download:

📄 Datasheet

Description:

Switched-capacitor voltage inverters. The ultra-small MAX870/MAX871 monolithic, CMOS charge-pump inverters accept input voltages ranging from +1.4V to +5.5V. The MAX870 op

MAX870 Application

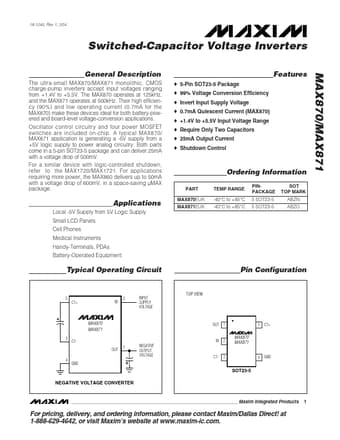

• Applications Oscillator control circuitry and four power MOSFET switches are included on-chip. A typical MAX870/ MAX871 application is generating a
