MAX8707 - Fixed-Frequency Controller

MAX8707 Description

19-3360; Rev 0; 8/04 Multiphase, Fixed-Frequency Controller for AMD Hammer CPU Core Power Supplies General .
The MAX8707 is a multiphase (3-/4-phase), interleaved, fixed-frequency, step-down controller for AMD Hammer CPU core supplies.

MAX8707 Features

* dedicated differential currentsense inputs for each phase and includes a fifth pair of current-sense inputs to provide an accurate voltagepositioning slope and average current-limit protection using a single current-sense resistor. The MAX8707 also has two dedicated inputs that provide differential

MAX8707 Applications

* stepping down the battery directly or stepping down the +5V system supply to create the core voltage. The single-stage conversion method allows these devices to directly step down high-voltage batteries for the highest possible efficiency. Alternatively, 2-stage conversion (stepping down the +5V sy

📥 Download Datasheet

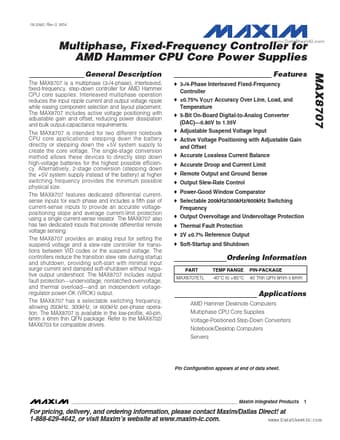

Preview of MAX8707 PDF
