MAX8713 - Simplified Multichemistry SMBus Battery Charger

Features

  • Over 2A Charge Current.
  • Intel SMBus 2-Wire Serial Interface.
  • ±0.6% Charge Voltage Accuracy.
  • 11-Bit Charge Voltage Resolution.
  • 6-Bit Charge Current Resolution.
  • Adjustable Switching Frequency.
  • +8V to +28V Input Voltage Range.
  • Cycle-By-Cycle Current Limit.
  • Charges Any Battery Chemistry (Li+, NiCd, NiMH, Lead Acid, etc. ).
  • Small 24-Pin TQFN MAX8713 The MAX8713 multichemistry battery charger simplifies constru.

📥 Download Datasheet

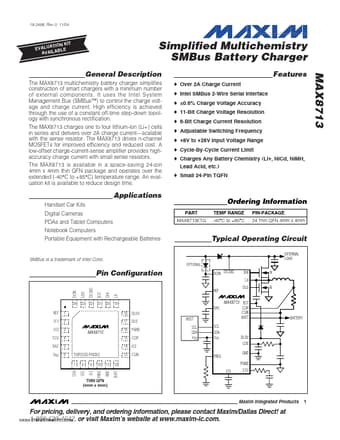

Datasheet preview – MAX8713
