MAXM17514

High-Efficiency Power Module

Maxim Integrated

MAXM17514 Features

* Reduces Design Complexity, Manufacturing Risks, and Time-to-Market

* Complete Integrated Step-Down Power Supply in a Single Package

* Passes EN55022 (CISPR22) Class-B Radiated and Conducted EMI Standard

* Saves Board Space in Space-Constrained Applications

MAXM17514 General Description

The MAXM17514 is a fixed-frequency, step-down power module in a thermally-efficient system-in-package (SiP) package that operates from a 2.4V to 5.5V input supply voltage and supports output currents up to 4A. The device includes switch-mode power-supply controller, dual nMOSFET power switches, a fu.

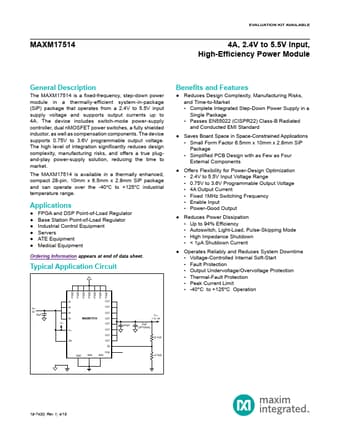

MAXM17514 Datasheet (511.04 KB)

MAXM17514 Datasheet Preview — Preview of MAXM17514 PDF

Datasheet Details

Part number:

MAXM17514

Manufacturer:

Maxim Integrated ↗

File Size:

511.04 KB

Description:

High-efficiency power module.
