MAXM17543 Datasheet - Maxim Integrated

DC-DC StepDown Power Module

MAXM17543 Features

* Reduces Design Complexity, Manufacturing Risks, and Time-to-Market

* Integrated Switching Power Supply Controller and Dual-MOSFET Power Switches

* Integrated Inductor

* Integrated Compensation Components

* Integrated Thermal-Fault Protection

MAXM17543 General Description

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power supply solutions. The MAXM17543 is an easy-to-use, step-down power module that combines a switching power supply controller, dual n-channel MOSFET power switches, fully shielded inductor, and the.

MAXM17543 Datasheet (954.93 KB)

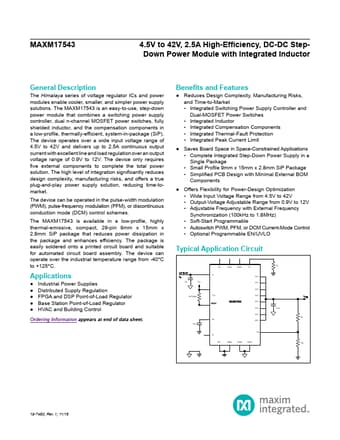

Preview of MAXM17543 PDF

Datasheet Details

Part number:

MAXM17543

Manufacturer:

Maxim Integrated ↗

File Size:

954.93 KB

Description:

Dc-dc stepdown power module.
