MAXM17552

Compact Step-Down Power Module

Maxim Integrated

MAXM17552 Features

* Easy to Use

* Wide 4V to 60V Input

* Adjustable 0.9V to 5.5V Output

* ±1.75% Feedback-Voltage Accuracy

* Up to 100mA Output Current

* Internally Compensated

* All Ceramic Capacitors

* High Efficiency

* Fixed-Frequency

MAXM17552 General Description

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler powersupply solutions. The MAXM17552 is a high-efficiency, synchronous, step-down DC-DC power module with integrated controller, MOSFETs, compensation components, and inductor that operates over a wide.

MAXM17552 Datasheet (0.99 MB)

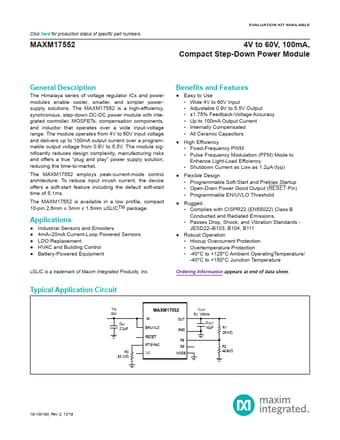

MAXM17552 Datasheet Preview — Preview of MAXM17552 PDF

Datasheet Details

Part number:

MAXM17552

Manufacturer:

Maxim Integrated ↗

File Size:

0.99 MB

Description:

Compact step-down power module.
Click here for production status of specific part numbers. MAXM17552 EVALUATION KIT AVAILABLE 4V to 60V, 100mA, Compact Step-Down Power Module Gener.
