MXD1810 Datasheet - Maxim Integrated

MXD1810 Low-Power uP Reset Circuits

The MXD1810 *MXD1813/MXD1815 *MXD1818 family of microprocessor (μP) reset circuits monitor power supplies in μP and digital systems. These devices provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +2.5V/+3.0V/+3.3V (MXD.

MXD1810 Features

* Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages

* Available in Four Reset Output Configurations

* Factory-Set Reset Threshold Voltages: 2.18V, 2.31V, 2.55V, 2.88V, 3.06V, 4.12V, 4.37V, 4.62V

* ±2.5% Reset Threshold Accuracy Over Temperat

MXD1810-MaximIntegrated.pdf

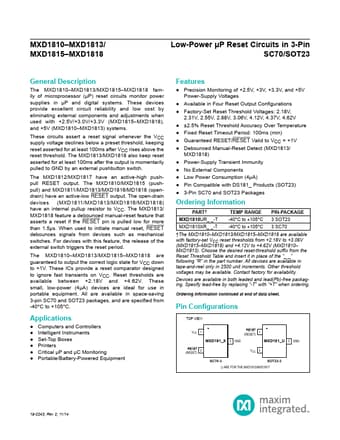

Preview of MXD1810 PDF
MXD1810 Datasheet Preview Page 2 MXD1810 Datasheet Preview Page 3

Datasheet Details

Part number:

MXD1810

Manufacturer:

Maxim Integrated ↗

File Size:

1.06 MB

Description:

Low-power up reset circuits.
