MXD1005 - 5-Tap Silicon Delay Line

MXD1005 Description

19-1309; Rev 0; 10/97 5-Tap Silicon Delay Line _______________General .
The MXD1005 silicon delay line offers five equally spaced taps with delays ranging from 12ns to 250ns and a nominal accuracy of ±2ns or ±3%, whichever.

MXD1005 Features

* o Improved Second Source to DS1005 o Available in Space-Saving 8-Pin µMAX Package o 17mA Supply Current vs. Dallas’ 40mA o Low Cost o Delay Tolerance of ±2ns or ±3%, whichever is Greater o TTL/CMOS-Compatible Logic o Leading- and Trailing-Edge Accuracy o Custom Delays Available MXD1005 ___________

MXD1005 Applications

* Clock Synchronization Digital Systems ______________Ordering Information PART MXD1005C/D__ MXD1005PA__ MXD1005PD__ MXD1005SA__ MXD1005SE__ MXD1005UA__ TEMP. RANGE 0°C to +70°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C PIN-PACKAGE Dice
* 8 Plastic DIP 14 Plastic D

📥 Download Datasheet

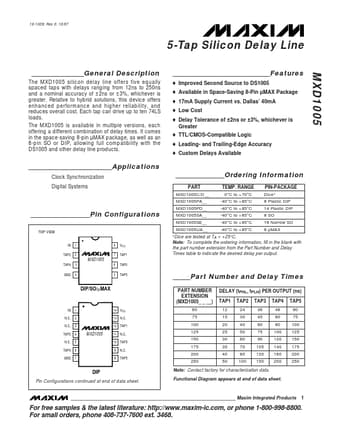

Preview of MXD1005 PDF
datasheet Preview Page 2 datasheet Preview Page 3
