MXD1000 Datasheet - Maxim

5-Tap Silicon Delay Line

MXD1000 Features

* o Improved Second Source to DS1000 o Available in Space-Saving 8-Pin µMAX Package o 20mA Supply Current (vs. Dallas’ 35mA) o Low Cost o Delay Tolerance of ±2ns or ±5%, whichever is Greater o TTL/CMOS-Compatible Logic o Leading- and Trailing-Edge Accuracy o Custom Delays Available MXD1000 _________

MXD1000 General Description

The MXD1000 silicon delay line offers five equally spaced taps with delays ranging from 4ns to 500ns and a nominal accuracy of ±2ns or ±5%, whichever is greater. Relative to hybrid solutions, this device offers enhanced performance and higher reliability, and reduces overall cost. Each tap can drive.

MXD1000 Datasheet (72.43 KB)

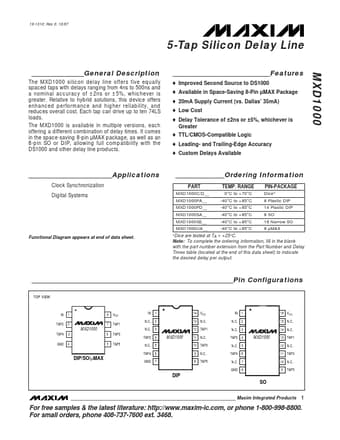

Preview of MXD1000 PDF

Datasheet Details

Part number:

MXD1000

Manufacturer:

Maxim

File Size:

72.43 KB

Description:

5-tap silicon delay line.
