MAX113

+3V / 400ksps / 4/8-Channel / 8-Bit ADCs

MAX113 Features

* o +3.0V to +3.6V Single-Supply Operation o 4 (MAX113) or 8 (MAX117) Analog Input Channels o Low Power: 1.5mA (operating mode) 1µA (power-down mode) o Total Unadjusted Error ≤ 1LSB o Fast Conversion Time: 1.8µs per Channel o No External Clock Required o Internal Track/Hold o Ratiometric Reference Inp

MAX113 General Description

The MAX113/MAX117 are microprocessor-compatible, 8-bit, 4-channel and 8-channel analog-to-digital converters (ADCs). They operate from a single +3V supply and use a half-flash technique to achieve a 1.8µs conversion time (400ksps). A power-down pin (PWRDN) reduces current consumption to 1µA typical..

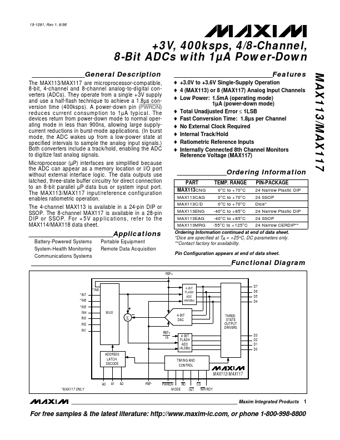

MAX113 Datasheet (106.99 KB)

Preview of MAX113 PDF

Datasheet Details

Part number:

MAX113

Manufacturer:

Maxim

File Size:

106.99 KB

Description:

+3v / 400ksps / 4/8-channel / 8-bit adcs.
