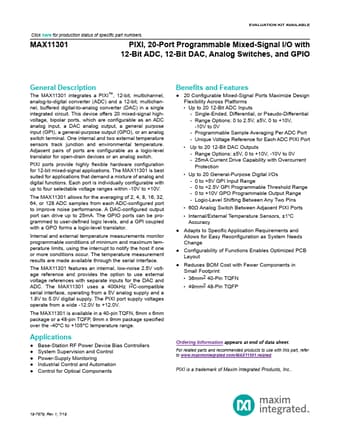

MAX11301 Datasheet Preview — Preview of MAX11301 PDF

Datasheet Details

Part number: MAX11301
Manufacturer: Maxim
File Size: 2.66 MB
Datasheet: MAX11301-Maxim.pdf
Description: 20-Port Programmable Mixed-Signal I/O

MAX11301 Product details

Description

The MAX11301 integrates a PIXI™, 12-bit, multichannel, analog-to-digital converter (ADC) and a 12-bit, multichannel, buffered digital-to-analog converter (DAC) in a single integrated circuit.

Features

an internal, low-noise 2.5V voltage reference and provides the option to use external voltage references with separate inputs for the DAC and ADC. The MAX11301 uses a 400kHz I2C-compatible serial interface, operating from a 5V analog supply and a 1.8V to 5.0V digital supply. The PIXI port supply voltages operate from a wide -12.0V to +12.0V. The MAX11301 is available in a 40-pin TQFN, 6mm x 6mm package or a 48-pin TQFP, 9mm x 9mm package specified over the -40°C to +105°C temperature range. Appl.
