MAX1132

16-Bit ADC / 200ksps / 5V Single-Supply

MAX1132 Features

* o 200ksps (Bipolar) and 150ksps (Unipolar) Sampling ADC o 16-Bits, No Missing Codes o 1.5LSB INL Guaranteed o 85dB (min) SINAD o +5V Single-Supply Operation o Low-Power Operation, 7.5mA (Unipolar Mode) o 2.5µA Shutdown Mode o Software-Configurable Unipolar and Bipolar Input Ranges 0 to +12V and ±12V

MAX1132 General Description

The MAX1132/MAX1133 are 200ksps, 16-bit ADCs. These serially interfaced ADCs connect directly to SPI™, QSPI™, and MICROWIRE™ devices without external logic. They combine an input scaling network, internal track/hold, clock, a +4.096V reference, and three general-purpose digital output pins (for exte.

MAX1132 Datasheet (388.83 KB)

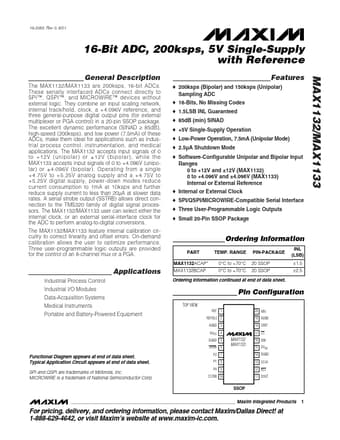

Preview of MAX1132 PDF

Datasheet Details

Part number:

MAX1132

Manufacturer:

Maxim

File Size:

388.83 KB

Description:

16-bit adc / 200ksps / 5v single-supply.
