MAX1213N - ADC

Maxim

📥 Download Datasheet

MAX1213N Datasheet Preview — Preview of MAX1213N PDF

Datasheet Details

Part number: MAX1213N
Manufacturer: Maxim
File Size: 812.58 KB
Datasheet: MAX1213N_Maxim.pdf
Description: ADC

MAX1213N Product details

Description

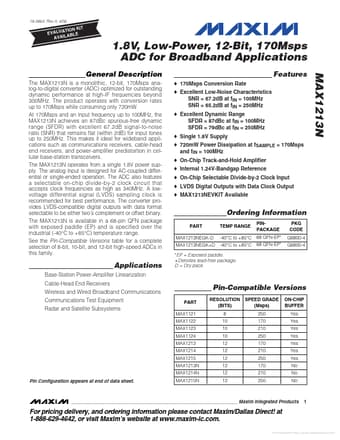

The MAX1213N is a monolithic, 12-bit, 170Msps analog-to-digital converter (ADC) optimized for outstanding dynamic performance at high-IF frequencies beyond 300MHz.

Features

a selectable on-chip divide-by-2 clock circuit that accepts clock frequencies as high as 340MHz. A lowvoltage differential signal (LVDS) sampling clock is recommended for best performance. The converter provides LVDS-compatible digital outputs with data format selectable to be either two’s complement or offset binary. The MAX1213N is available in a 68-pin QFN package with exposed paddle (EP) and is specified over the industrial (-40°C to +85°C) temperature range. See the Pin-Compatible Versions.
