Part number: MAX1214N
Manufacturer: Maxim
File Size: 763.15 KB
Datasheet: MAX1214N_Maxim.pdf
Description: ADC

MAX1214N Product details

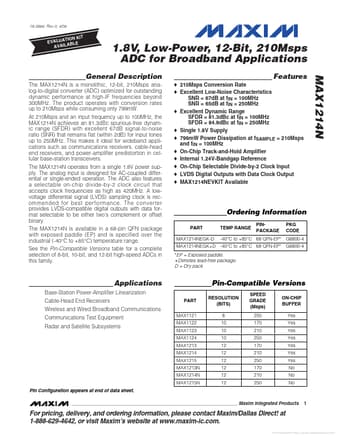

Features

210Msps Conversion Rate.
Excellent Low-Noise Characteristics SNR = 67dB at fIN = 100MHz SNR = 65dB at fIN = 250MHz.
Excellent Dynamic Range SFDR = 81.3dBc at fIN = 100MHz SFDR = 84.9dBc at fIN = 250MHz.
Single 1.8V Supply.
799mW Power Dissipation at fSAMPLE = 210Msps and fIN = 100MHz.
On-Chip Track-and-Hold Amplifier.
Internal 1.24V-Bandgap Reference.
On-Chip Selectable Divide-by-2 Clock Input.
LVDS Digital Outputs.
