MAX1231 - 12-Bit 300ksps ADCs

MAX1231 Description

19-2851; Rev 7; 4/12 EVAALVUAAILTAIOBNLEKIT 12-Bit 300ksps ADCs with FIFO, Temp Sensor, Internal Reference MAX1227/MAX1229/MAX1231 General Descript.
The MAX1227/MAX1229/MAX1231 are serial 12-bit analog-to-digital converters (ADCs) with an internal reference and an internal temperature sensor.

MAX1231 Features

* o Internal Temperature Sensor (±0.7°C Accuracy) o 16-Entry First-In/First-Out (FIFO) o Analog Multiplexer with True Differential Track/Hold 16-, 12-, 8-Channel Single Ended 8-, 6-, 4-Channel True Differential (Unipolar or Bipolar) o Accuracy: ±1 LSB INL, ±1 LSB DNL, No Missing Codes Overtemperature

📥 Download Datasheet

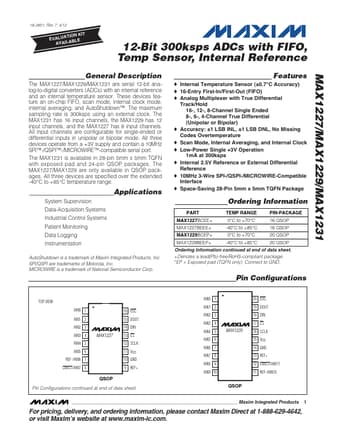

Preview of MAX1231 PDF
datasheet Preview Page 2 datasheet Preview Page 3
