MAX1236 - 12-Bit ADCs

MAX1236 Description

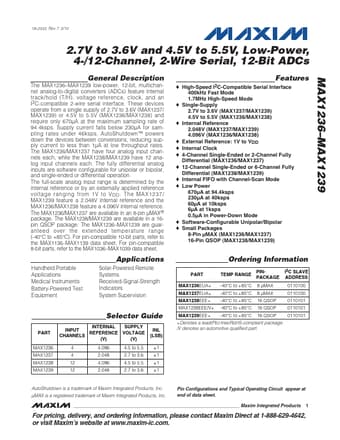

19-2333; Rev 7; 5/10 MAX1236 *MAX1239 2.7V to 3.6V and 4.5V to 5.5V, Low-Power, 4-/12-Channel, 2-Wire Serial, 12-Bit ADCs General Descriptio.
The MAX1236. MAX1239 low-power, 12-bit, multichannel analog-to-digital converters (ADCs) feature internal track/hold (T/H), voltage reference,.

MAX1236 Features

* High-Speed I2C-Compatible Serial Interface 400kHz Fast Mode 1.7MHz High-Speed Mode
* Single-Supply 2.7V to 3.6V (MAX1237/MAX1239) 4.5V to 5.5V (MAX1236/MAX1238)
* Internal Reference 2.048V (MAX1237/MAX1239) 4.096V (MAX1236/MAX1238)
* External Reference: 1V to VDD

MAX1236 Applications

* Handheld Portable Applications Medical Instruments Battery-Powered Test Equipment Solar-Powered Remote Systems Received-Signal-Strength Indicators System Supervision Selector Guide PART INPUT CHANNELS INTERNAL REFERENCE (V) SUPPLY VOLTAGE (V) INL (LSB) MAX1236 MAX1237 MAX1238 MAX1239 4 4 1
