MAX153 - 1Msps / P-Compatible / 8-Bit ADC

Name: MAX153
SKU: MAX153-447476

Maxim

📥 Download Datasheet

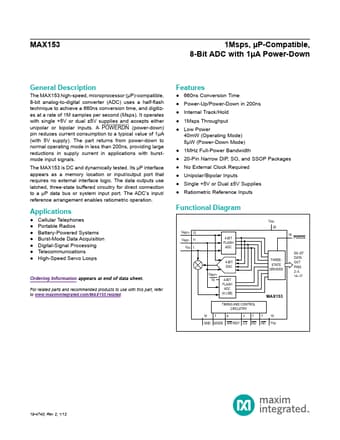

MAX153 Datasheet Preview — Preview of MAX153 PDF

Datasheet Details

Part number	MAX153
Manufacturer	Maxim
File Size	435.92 KB
Description	1Msps / P-Compatible / 8-Bit ADC
Datasheet	MAX153_MaximIntegratedProducts.pdf

MAX153 Product details

Description

The MAX153 high-speed, microprocessor (µP)-compatible, 8-bit analog-to-digital converter (ADC) uses a half-flash technique to achieve a 660ns conversion time, and digitizes at a rate of 1M samples per second (Msps).

Features

660ns Conversion Time.
Power-Up/Power-Down in 200ns.
Internal Track/Hold.
1Msps Throughput.
Low Power 40mW (Operating Mode) 5µW (Power-Down Mode).
1MHz Full-Power Bandwidth.
20-Pin Narrow DIP, SO, and SSOP Packages.
No External Clock Required.
Unipolar/Bipolar Inputs.
Single +5V or Dual ±5V Supplies.
Ratiometric Reference Inputs Functional Diagram VREF+ 12 VREF- 11 VIN 1 VDD 20 4-BIT FLASH ADC 4-BIT DAC VREF+ 16 4-BIT FLASH ADC (4 LS.
