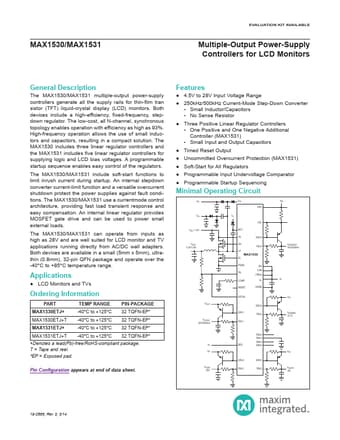

MAX1530 Datasheet Preview — Preview of MAX1530 PDF

Datasheet Details

Part number	MAX1530
Manufacturer	Maxim Integrated Products
File Size	716.65 KB
Description	Multiple-Output Power-Supply Controllers
Datasheet	MAX1530_MaximIntegratedProducts.pdf

MAX1530 Product details

Description

The MAX1530/MAX1531 multiple-output power-supply controllers generate all the supply rails for thin-film transistor (TFT) liquid-crystal display (LCD) monitors.

Features

o 4.5V to 28V Input Voltage Range o 250kHz/500kHz Current-Mode Step-Down Converter Small Inductor/Capacitors No Sense Resistor o Three Positive Linear Regulator Controllers One Positive and One Negative Additional Controller (MAX1531) Small Input and Output Capacitors o Timed Reset Output o Uncommitted Overcurrent Protection (MAX1531) o Soft-Start for All Regulators o Programmable Input Undervoltage Comparator o Programmable Startup Sequencing MAX1530/MAX1531 Minimal Operating Circuit VP VIN V.
