MAX15005B 4.5V to 40V Input Automotive Flyback/Boost/SEPIC Power-Supply Controllers

The MAX15004A/B/MAX15005A/B high-performance, current-mode PWM controllers operate at an automotive input voltage range from 4.5V to 40V (load dump). The input voltage can go lower than 4.5V after startup if IN is bootstrapped to a boosted output voltage. The controllers integrate all the building b.

MAX15005B Features

* include cycle-by-cycle and hiccup current limit, output over-voltage protection, and thermal shutdown. The MAX15004A/B/MAX15005A/B are available in spacesaving 16-pin TSSOP and thermally enhanced 16-pin TSSOP-EP packages. All devices operate over the -40°C to +125°C automotive temperature range. App

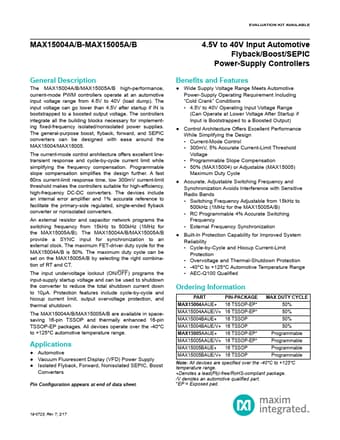

MAX15004A-MaximIntegrated.pdf
