MAX15003

Triple-Output Buck Controller

Maxim Integrated Products

MAX15003 Features

* include lossless valley-mode current limit and hiccup mode output short-circuit protection. The MAX15003 is available in a space-saving, 7mm x 7mm, 48-pin TQFN-EP package and is specified for operation over the -40°C to +125°C automotive temperature range. See the MAX15002 data sheet for a dual vers

MAX15003 General Description

The MAX15003 is a triple-output, pulse-width-modulated (PWM), step-down DC-DC controller with tracking and sequencing capability. The device operates over the input voltage range of 5.5V to 23V or 5V ±10%. Each PWM controller provides an adjustable output down to 0.6V and delivers up to 15A for each.

MAX15003 Datasheet (468.69 KB)

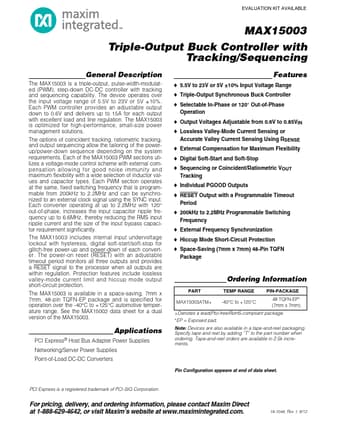

MAX15003 Datasheet Preview — Preview of MAX15003 PDF

Datasheet Details

Part number:

MAX15003

Manufacturer:

Maxim Integrated ↗ Products

File Size:

468.69 KB

Description:

Triple-output buck controller.
